As one of high-density storage racks, shuttle pallet racking system uses a shuttle with an electric motor to run along support rails within storage channels, loading and unloading pallet load. It is suitable for storage of items with small varieties and large quantity. One pallet weight is from 500 kg to 1500 kg. Pallet load weight 1200 kg is widely used.
Advantages
1 High density storage, one channel could be as long as 50 meters and it has better storage capacity among the high-density storage racks;
2 Pallet could be FIFO (first-in, first-out), or FILO (first-in, last-out);
3 Cost effective. Compared with other high-density storage rack, such as gravity-flow pallet rack, the cost per pallet position is better.
4 Cold room storage applicable. When used for cold room storage, it will save a lot of space compared with common pallet racks.
Comparison between different high-density storage racks
| No. | Item | suggested max. pallet quantity on rack depth | cost |
| 1 | shuttle pallet rack | 50 | medium |
| 2 | push-back pallet rack | 4 | medium high |
| 3 | drive-in pallet rack | 7 | low |
| 4 | gravity flow pallet rack | 20 | high |

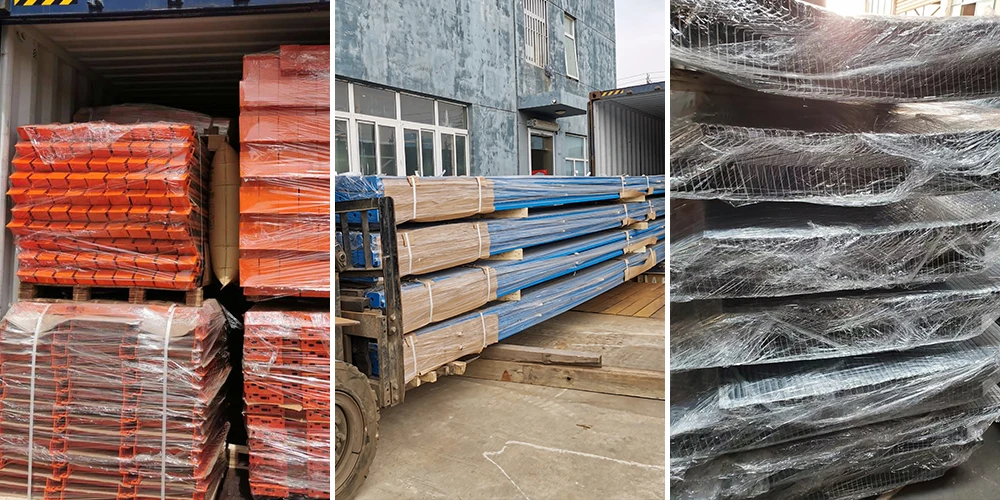

Package for the rack beam, upright and support rail:
Service
1) provide detailed drawing and quotation with weight and volume information.
2) Transaction via third party is acceptable to protect customer's interest.
3) Change to order is available when confirm to us the production is not done.
4) Detailed packing information and list will be provided.
5) Provide installation drawing and steps to help customers' installation, OR send professional installation crew to do the entire installation job.
What information is needed for a detailed quotation?
1. Pallet load dimension, including length, depth and height, and max. pallet load weight;
2. Storage level needed and bay quantity or storage area length;
3. Pallet quantity on rack depth or storage area width;
4. Other matters that need supplier to pay attention to, such as storage temperature, etc
