Drive-in Pallet Racking
Your Professional Drive-In Pallet Racking Manufacturer!
Nanjing Hongbo Metal Products Co., Ltd. was established on June 19, 2020, with a total of 40 employees as of September 2024.Our is engaged in a variety of shelves, logistics system planning, design, manufacturing, installation of professional manufacturers, with strong technical force, integrated production equipment, mature installation team and perfect after-sales service system.We're known as one of the most professional pallet racking manufacturers and suppliers in China.
-

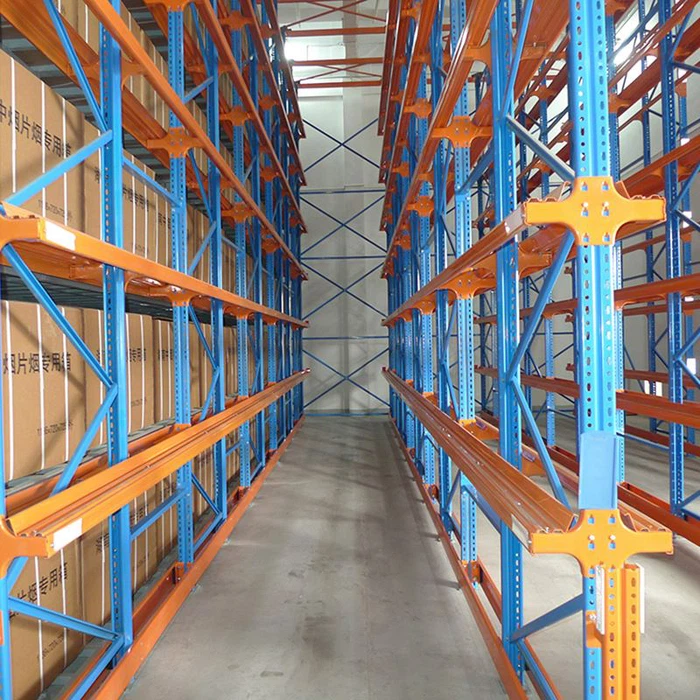

Drive in Racks WarehouseDrive in pallet rack, push back pallet rack, radio shuttle rack are all belong to high density FILOAdd to Inquiry -
High Density FILO Warehouse Storage RackDrive in pallet rack, push back pallet rack, radio shuttle rack are all belong to high density FILOAdd to Inquiry -

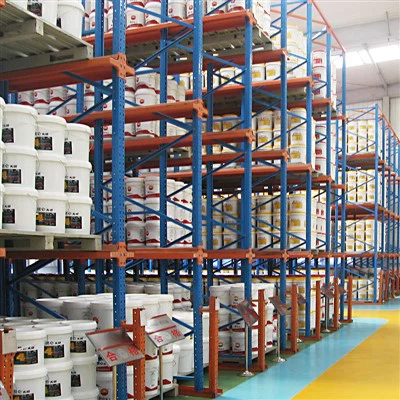

Cold Room Storage RacksThere are several types of racks that is suitable for cold room storage, which are drive in palletAdd to Inquiry -
Big Width Drive in Pallet RacksDrive in pallet racking system is used for the storage of palletized load with small varieties andAdd to Inquiry -

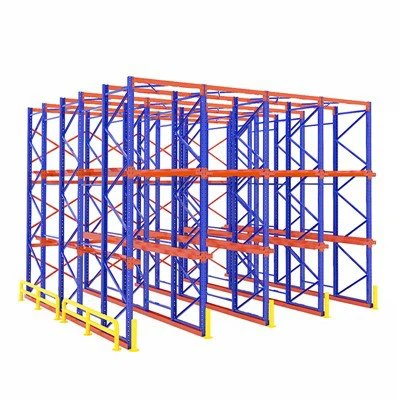

Drive in Pallet Racking SystemDrive in pallet racking system is used for palletized item storage. Forklift vehicle enter theAdd to Inquiry
Why Choose Us
Advanced technology
Our company operates strictly in accordance with industry norms, continuously absorbs advanced technologies from domestic and foreign logistics systems, integrates the actual situation of domestic enterprises, continuously develops new products, and timely customizes various logistics equipment selection solutions for customers based on the characteristics of logistics solutions in various industries and mechanical theory and steel structure technology.
Complete production equipment
Our company has various types of logistics and warehousing products and various metal product production equipment, including various profiles high-precision rolling lines, CNC punching and folding, laser cutting machines, electrostatic powder spraying and other fully automatic production lines, forming a complete production system.
Professional team
Our company is equipped with experienced project engineers to respond to service requests. If on-site service is required, our engineers will arrive on-site to provide service within 12 hours at most.
One-stop service
Our company has professionals to conduct pre-sales project communication, demand planning, and production arrangements after the project is signed. There are dedicated people responsible for every aspect of production. We also have a dedicated after-sales service team to provide all after-sales services for the project according to the progress of the project.
Advantages of Drive-In Pallet Racking
Maximum utilisation of space: It makes excellent use of both the available surface area and height, thus increasing storage capacity compared to conventional pallet racking.
Simple and cost-effective: It is the simplest high-density storage system and requires the lowest investment.
Configurable: The depth and height of this racking can be adapted to the needs of each customer and to the characteristics of the goods handled.
One or two aisles: This solution can be used with just one aisle (loading and unloading from the front) or with two (loading in the front, unloading from the back).
Guiding elements: Drive-in racks incorporate accessories that facilitate forklift movements and correct pallet positioning.
Energy savings: The smaller footprint reduces the surface area to be cooled in cold storage and freezer warehouses.
Easy inventory management: Each lane stores a single SKU, streamlining stock control.
Different pallet types: This racking can accommodate pallets of varying weights and dimensions.
Specification
|
Brand name |
Heda Shelves |
|
Product name |
Warehouse Heavy Duty Pallet Racking - Drive in Racking System |
|
Material |
Cold-rolled Steel Q235B |
|
Product size |
Length: 1200/1500/1800 mm |
|
Thickness |
Column:1.5mm, 2.0mm (can be customized) |
|
Load capacity |
1000-4000kg/layer (can be customized) |
|
Layers |
2-5 adjustable layers (can be customized) |
|
Color |
RAL color; As per customer's requirement (can be customized) |
|
Surface Treatment |
Electrostatic spray surface |
|
Feature |
Anti-rust, Corrosion-protection |
|
MOQ |
10 sets |
|
Supply Ability |
500000 pieces per month |
|
Payment Terms |
30% deposit upon signing the contract, the balance will be cleared by T/T before delivery |
|
Delivery Time |
Within 10-35 workday upon receipt of the deposit |
Drive-In Racking Components
Frames: Pallet rack upright frames bring storage height to the system and provide a sturdy structure to which the beams and rails attach. Cant leg uprights are popular for drive-in pallet racking.
Cant leg (set-back leg) uprights: Cant leg uprights (also known as set-back frames or offset frames) slope inward near the bottom of the frame to provide greater forklift clearance at the damage-prone aisle entrances.
Top tie beams: Overhead tie beams add rigidity to the entire drive-in structure and are required for seismic locations.
Rail support beams: Rail support beams support the drive-in rails from the rear of the system and add rigidity to the system.
Interior support arms: Interior support arms provide additional support to the drive-in rail from within the system.
Drive-in rail: Drive-in rails run the entire length of the system attached to the support beams and interior support arms and provide a continuous seat to place pallets on. Roll-formed and structural drive-in rails are available, each with unique benefits.
Bracing: Top X-bracing and rear X-bracing provide additional strength and rigidity to a drive-in system.
Guide Rails: Drive-in guide rails guide forklifts along the floor as they enter the rack system to ensure proper alignment and storage safety.
Column protection: Column protection and safety accessories are especially important for drive-in pallet racking because these systems are highly susceptible to forklift damage.
Stop beams: Stop beams prevent pallets from hitting the rear bracing when driven into the system.
Technical Data of Drive-in Rack
|
Products |
Heavy Duty Pallet Rack |
Medium/Light Duty Rack |
|
Loading Capacity |
1000-5000KG/layer |
100-1000KG/layer |
|
Specification |
Main Racking: L2000*D1200*H4800mm*4layers (Designed by different demands) |
Main Racking: L1500*D1200*H3000mm*4layers (Designed by different demands) |
Applications Of Drive-In Pallet Racking
Buffer warehouses
In its drive-through configuration (two aisles), the racking system functions as a buffer.
Cold stores
This solution is extremely common in cold storage rooms that need to leverage all space allocated to controlled temperature storage.
Logistics centres in large cities
The space savings makes these racks a perfect fit for warehouses in areas with high logistics real estate costs.
Facilities with largely homogeneous goods
Drive-in warehouse racking is especially suitable for a small variety of SKUs and many pallets per SKU.
Packing & Delivery
FAQ
We're professional drive-in pallet racking manufacturers and suppliers in China, specialized in providing high quality customized service. We warmly welcome you to buy cheap drive-in pallet racking from our factory.
