Boltless shelving is easy to install and disassemble. The middle upright could be shared to make a long span, which is economical. It is for small items storage. Items are stored and pick-up manually. When the height is more than 2m, ladder could be used to help with store and pick-up.
Characteristics
1 Could connect one to another to make long span;

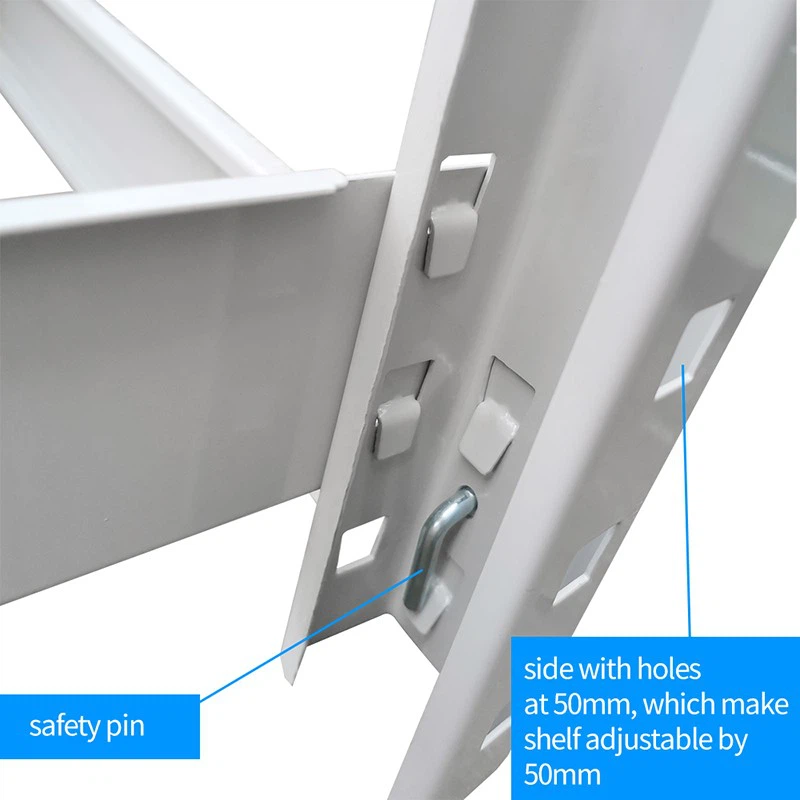

2 Shelf adjustable every 50mm;
3 No need screw;
4 Load up to 350 kgs per layer;
5 Powder coated finish with different color choice.
6 Size, layer and layer load is customized based on buyer's storage needs, normally the length is no bigger than 1.8 meter, depth no bigger than 0.8 meter, height no bigger than 3 meter
The structure design make one shelving bay could connected to another to make a long bay.
| Access Style | flexiable | ||
| Structure | boltless | ||
| Working Asile | around 1000mm,depends on customer's storage needs | ||
| Components | core components | upright,beam,shelf,shelf support | |
| optional components | back/side board,back/side mesh,tie, divider,etc | ||
| Core Components Specification | upright section | size | 55*55*1.5mm |
| adjust step | 50mm | ||
| shelf thickness | 0.6mm, 0.7mm | ||
| beam thickness | 1.5mm, t1.8mm | ||
| Material | Q235 | ||
| Finish | Epoxy resin electrostatic spraying(powder coating) | ||
| Coating thickness | no less than 40um for average thickness | ||
