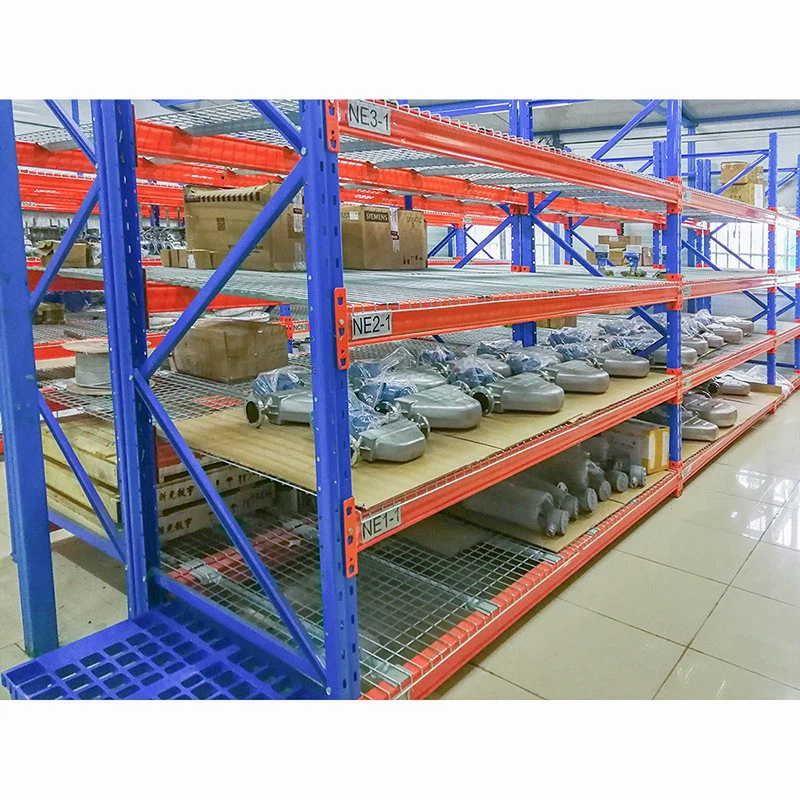

The basic components of warehouse storage pallet rack is upright frame and beam. Wire decking is mainly used to increase the security of the pallet racking systems or used to store small-volume items.
1 Upright frame( including, 2 uprights, H-bracing, D-bracing, base plate, fasteners)
2 Beam
3 Wire decking
4 End frame protector
5 Upright front protector

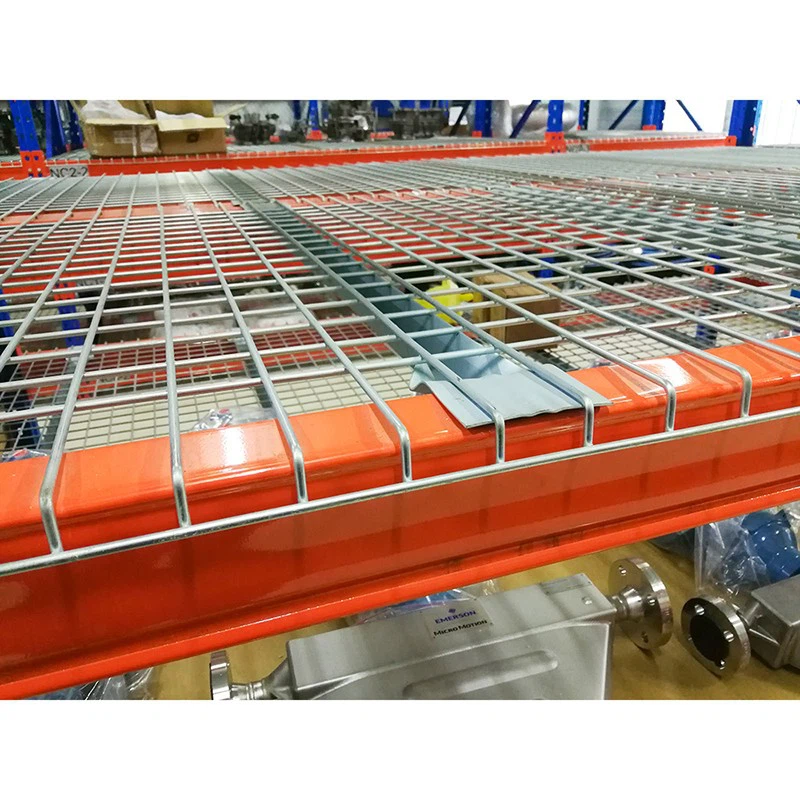

Normally, the wire mesh is with 50*50 mm or 50*100 mm size. And wire diameter is 5.0 mm, 5.5 mm or 6.0 mm. The rib is with 1.5 mm, 1.8 mm, 2.0 mm thickness.

1 50*50 mm mesh
2 50*100 mm mesh
There are 2 options of finish of mesh decking, electro galvanized finish and powder coated finish. Electro-galvanized finish is commonly used. Powder coated finish is available when needed.

Other part option please refer following info.:

| Item No. | Item | Function |
| 1 | Protecting mesh | protect stored items near aisle from falling |
| 2 | Row spacer | connect two back to back row |
| 3 | Wooden shelf | used with pallet support type I to support items |
| 4 | Steel shelf | store materials |
| 5 | Pallet support type I | support pallet |
| 6 | Pallet support wide type I | support pallet legs |
| 7 | Pallet support type H | support pallet |
| 8 | Galvanized steel shelf | store materials |
| 9 | Plywood support | support plywood or materials with long length, for easy forklift pick up |
| 10 | Bin support | support bin with week leg strength |
