The elementary parts of metal pallet rack is frame and beam. The structure is simple and mainly for pallet storage. When the structure is equipped with shelf, it could be used to store both palletized item and manual operation items. Following is the structure.
1 frame
2 beam
3 steel shelf
Notes: size and load is customized based on user's storage needs.
Following table will give you a brief view about the rack
| Rack Cost | √Low, Medium Low,Medium,Medium high,High,Higher | ||
| Pick-up Mode | flexiable | ||
| Structure | knock down or assembled,welded frame available | ||
| Forklift Asile | around 3500mm,or depends on customer's forklift parameter | ||
| Load Capacity & Dimension | load capacity | 500-4000kgs/beam pair | |
| size | customized based on clients' pallet | ||
| Components | core components | frame(upright,also called column or post,bracing,base plate,fasteners),beam | |
| Other | upright protector,frame protector,spacer,wire mesh decking,board,back stopper,top tie,side mesh,pallet support,etc. | ||
| Core Components Specification | upright | size(mm) | 80*60, 90*60, 90*70, 100*70, 120*95, 120*135 |
| adjust step(mm) | 75 | ||
| beam | size(mm) | 80*50,100*50,110*50,120*50,130*50,140*50,160*50,180*50 | |
| Material | Q235(ss400),Q355(S355B,S355JR) | ||
| Finish | Epoxy resin electrostatic spraying(powder coating) | ||
| Coating thickness | no less than 60um for average thickness | ||
| Color | ral5015(sky blue),ral5005(signal blue),ral2004(pure orange),ral1003(signal yellow),ral7035(light grey) Customized colors are available, contact us for confirmation |
||
Advantage of the structure:
1 Suitable for both of pallet unit product and manual operation product
2 Give pallet support when pallet leg is not strong enough to be placed on just beams
3 Multi choice of shelf for different storage purpose. The shelf could be solid steel, wire mesh, wooden
Plywood shelf, steel shelf, wire decking, punched shelf
Project cases

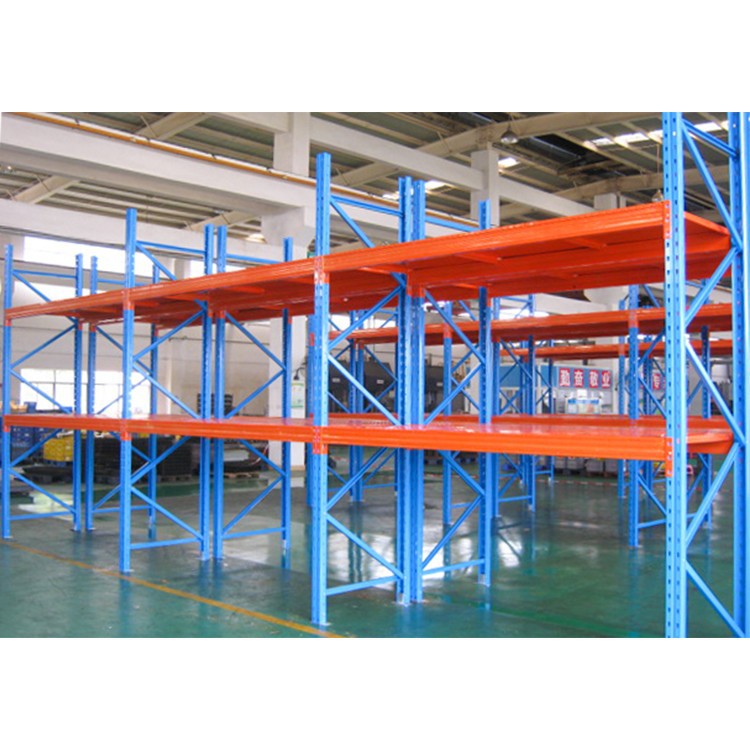

Ground and two beam levels, total 3 storage levels. The shelf is solid steel.
Fabric roll storage rack, some with solid steel board, some with ground for pallet unit storage.
Packing
Upright: plywood stick, carton board, stretch film, packing belt
Beam: plywood stick, carton board, stretch film, packing belt
Steel shelf: plywood pallet or steel frame
FAQ
Question 1:
Are you factory or trading company?
Answer 1:
We are factory. Our factory was in no. 88-3, Hengyun East Road, Jiangning, Nanjing, China, in April 2024, our factory moved to no. 165 Gongye Road, Bowang District, Ma'anshan, Anhui, China.
Question 2:
Why choose you?
Answer 2:
1. Regarding quality: we have been working with SGS for several times and all pass the test.
2. Regarding price: we are factory and could offer better price.
3. Regarding service: our sales team have experience in dealing different projects.
4. Regarding afer-sale service: we offer detailed installation drawing and steps or send installation crew to do all the installation job for our buyer.
Question 3:
For the same project, why price differ a lot from different suppliers?
Answer 3:
Sometime, you will find for the same project, sometimes you will receive different prices and price could differ a lot. Here is the reasons you may consider.
1 Material quoted is different. For same load capacity, different safety factor may lead to different material. So, when send inquiry, please specify your needs with as more details as possible, which will help your supplier get the right solution and help yourself get the price that is more suitable.
2 Material tolerance is different. Raw material price affect a lot to the rack price, for smaller tolerance, the price is higher, for big material tolerance, the price is lower. Both could meet National Standard.
3 Different processing technique. Better technique will result in higher price.
Question 4:
How to get a detailed price?
Answer 4:
To get a detailed quotation, please provide following info:
1. Rack dimension, or pallet dimension, including length, depth and height;
2. Storage level needed, or available space height that for storage;
3. Maximum pallet load weight;
4. Quantity of rack needed, or storage area size and aisle width that for your forklift to work in;
5. Other matters that need supplier to pay attention to, such as temperature, safety factor etc.
